2X2 Bypass Optical Switch
comment:0
Product Details
Code: GP-S7069

2X2 Bypass Optical Switch

GAPHO 2×2B Byass Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12×(H)8.2mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.


Features:                                                                                                                    Applications:

Low Insertion Loss                                                                                                       R&D in Laboratory

Wide Wavelength Range                                                                                             System Monitoring

Low Crosstalk                                                                                                              OADM
High Stability, High Reliability                                                                                       MAN (Metropolitan Area Network)

Epoxy-free on Optical Path
Latching and Non-latching

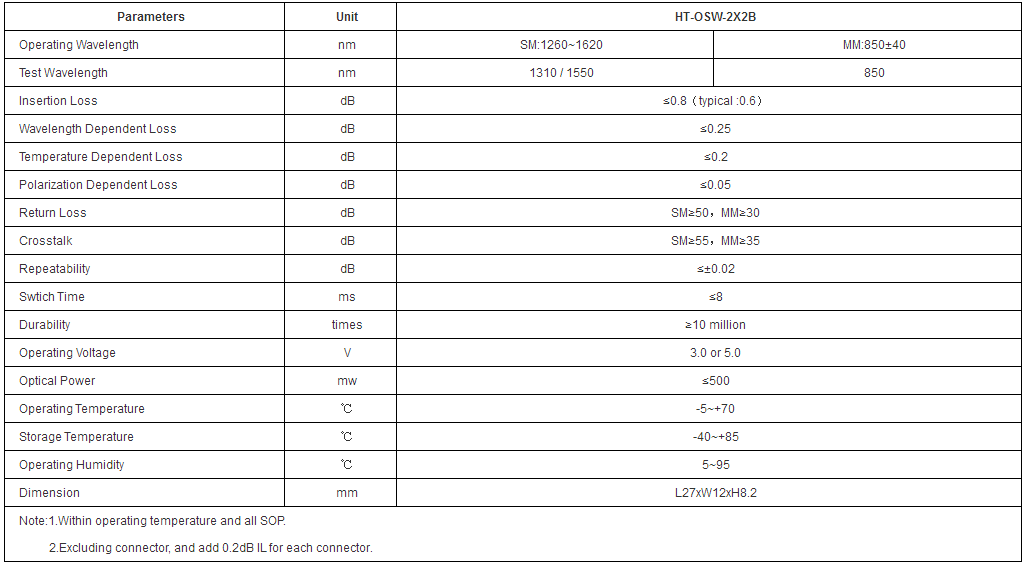

Specifications:

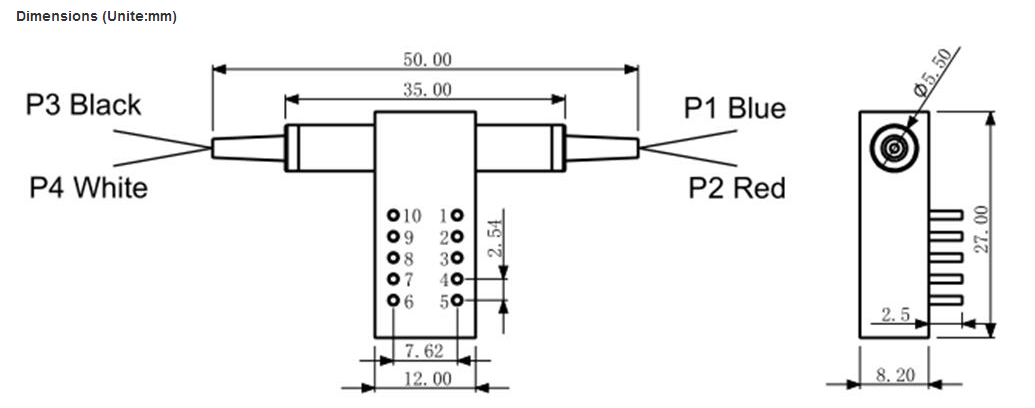

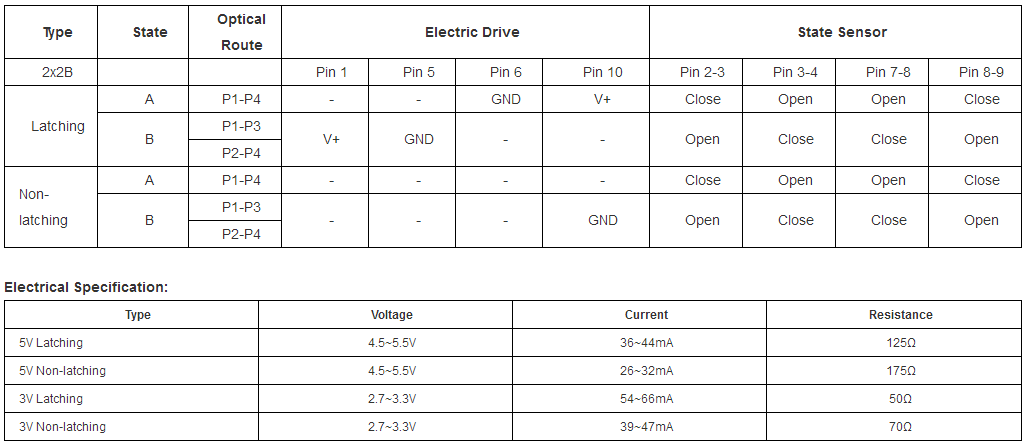

Pin Configurations:
